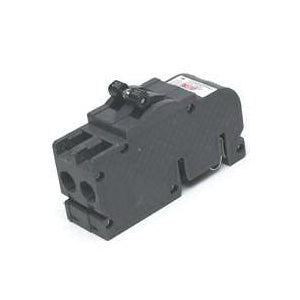

Thick Series, SWD rated Zinsco replacement breaker. Requires two 3/4 in spaces. 120/240 VAC, 10,000 AIC.
Product Details
Manufacturer: CONNECTICUT ELECTRIC
Manufacturer's Part Number: UBIZ260
Show me more Circuit Breakers
Product Features
- HACR/SWD rated
- Available in thick, thin and twin designs
Product Specifications
| Current Rating | 60 A |
| Dimensions | 4.81 in L x 1.5 W x 2.53 H |
| Interrupt Rating | 10 kA |
| Mounting Type | Plug |
| Number of Poles | 2 |
| Operating Frequency | 50/60 Hz |
| Suitable for | Zinsco QCAL60 Series Load Centers |
| Trip Type | Standard |
| Type | Type UBIZ |
| Voltage Rating | 120/240 V |
Product Documents
| Catalog | Click here to download |
| Specification Sheet | Click here to download |
